pacific Trawler
Deep Sea Trawler

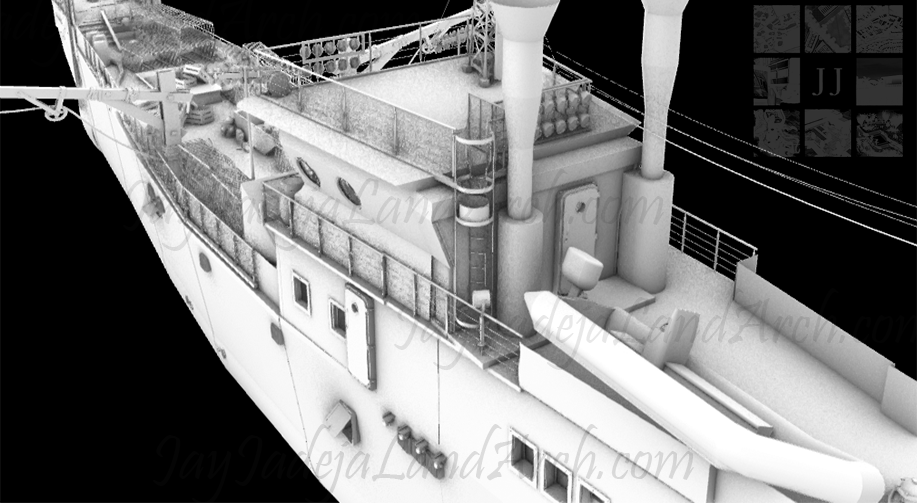

Designed, Modeled and Rendered using Rhino 6 + Google SketchUp
This project was broken into three phases before resulting in total completion.
This project initially began as a purely structural design, and cumulatively later included interior fitting and indicative/conceptual engineering.
Phase 1 - Exterior Shell + Bracing (3 Weeks)

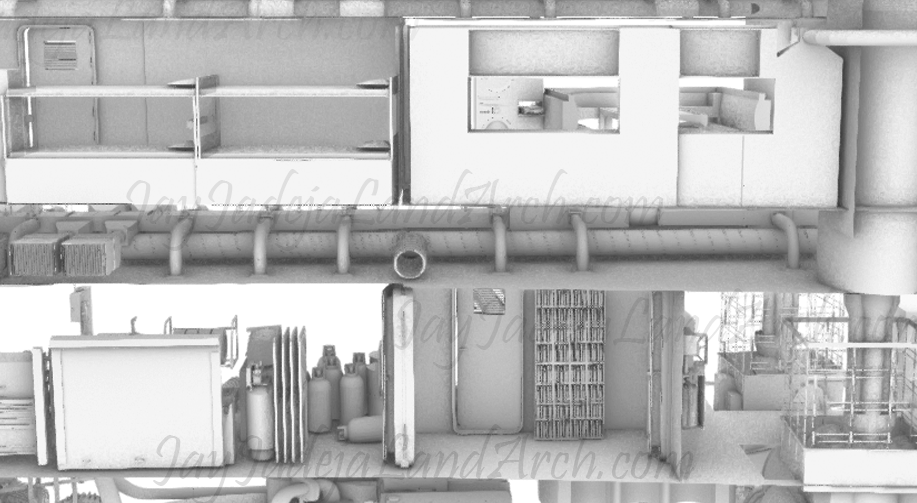

Phase 2 - Engineering + Partitioning (8 Weeks)

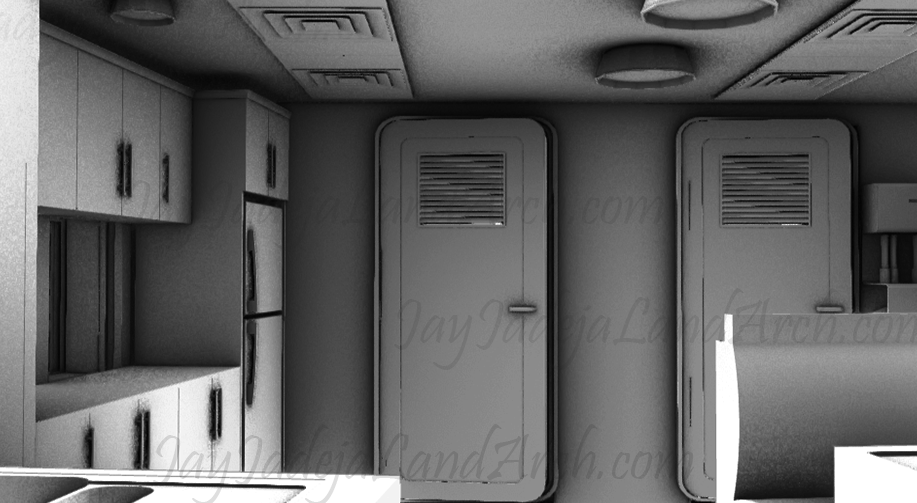

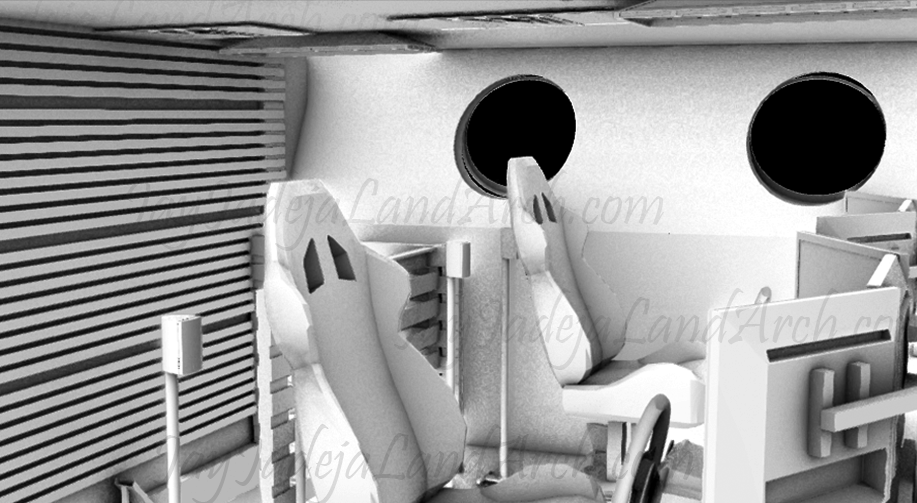

Phase 3 - Deck Work + Interior (7 Weeks)
Engine parts were assembled and placed indicatively to conceptualize the mechanics of the vessel. Some of these mechanical parts were downloaded from available public sources and modified or manipulated for this design.
